ASUS EX B460M-V5 Motherboard



Product Details

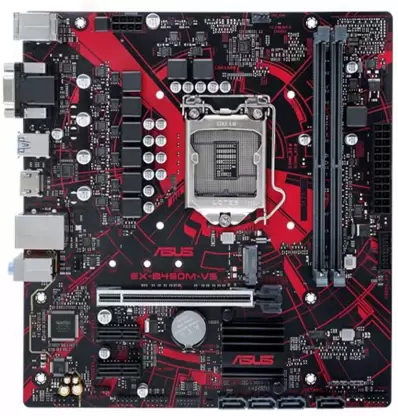

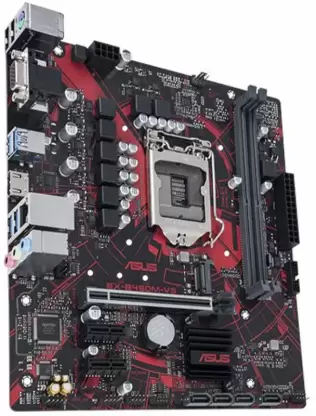

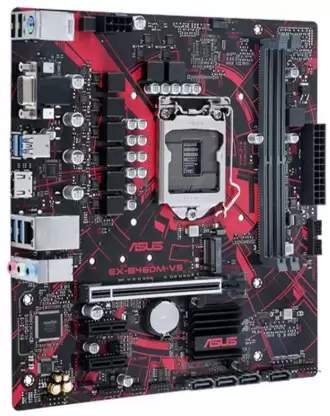

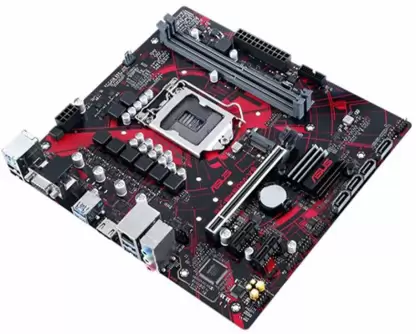

ASUS EX B460M V5 motherboard is designed to support the 10th Gen Intel Core processors with Intel B460 and DDR4 memory up to 64GB in Dual Channel Architecture. The board supports Intel 14 nm CPU, Turbo Boost Technology 2.0. and Turbo Boost Max Technology 3.0. The board supports HDMI and D-Sub ports. Equiped with M.2 slot with M key, 4 x SATA 6Gbps ports and the rear port includes 4 X USB 3.2 Gen 1, 2 x USB 2.0 ports. ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration and exclusive 5X Protection III for absolute reliability.

  • Suitable For Desktop
  • Intel B460
  • Data Rate DDR4
  • Maximum RAM Capacity 64 GB
  • Form Factor: ATX

In The Box
Sales Package
  • User´s manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD
  • ASUS
Model ID
  • EX B460M-V5
Form Factor
  • ATX
Socket Type
  • LGA 1200
  • Intel B460
Memory Configuration
  • 64 GB DDR4 DIMM
Integrated Graphics card
  • NA
Audio Codec
  • Realtek ALC887 7.1-Channel High Definition Audio CODEC *1

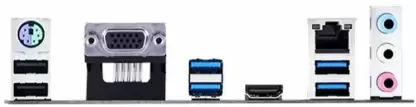

Back Panel Ports
USB 2.0 Ports, Controller
  • 2
USB 3.0 Ports, Controller
  • 4
HDMI Ports
  • 1
General Features
OS Support
  • Windows® 10 64-bit
